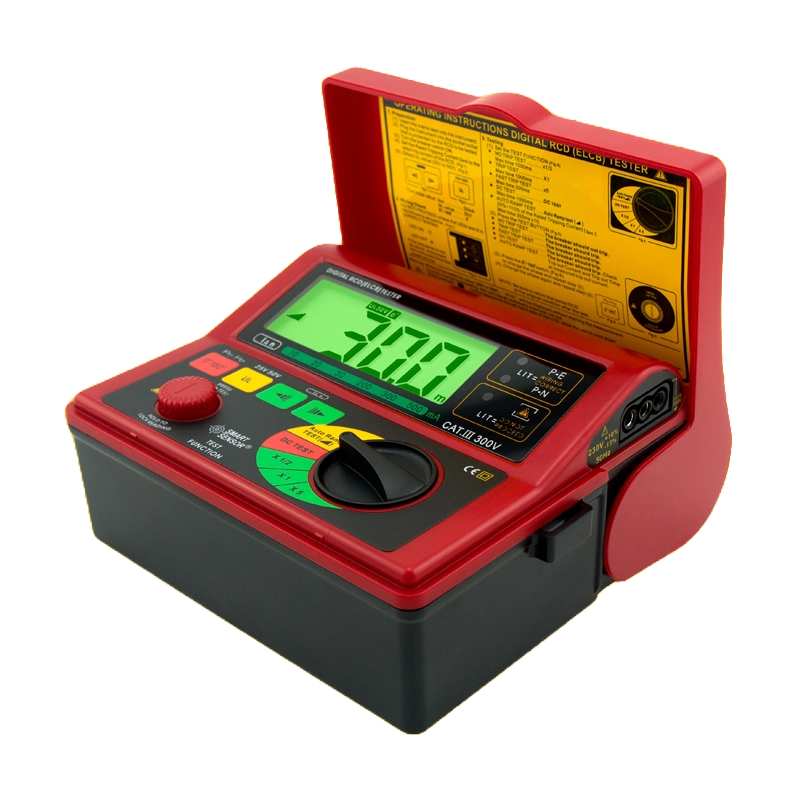

AR 5406 Digital RCD (ELCB) Tester
An ELCB, also known as a Residual Current Device (RCD) or Ground Fault Circuit Interrupter (GFCI), is a safety device designed to quickly detect and interrupt electrical circuits when it senses an imbalance between the current flowing in the live and neutral conductors. This imbalance, known as a “leakage current,” can occur due to various reasons, such as damaged wiring, faulty appliances, or accidental contact with a live conductor.
Ensuring
electrical safety in residential and commercial buildings is of paramount
importance. One crucial component that plays a vital role in preventing
electric shocks, fires, and other hazards is the Earth Leakage Circuit Breaker
(ELCB). However,
like any electrical device, ELCBs can malfunction or deteriorate over time,
which is why regular testing is essential to ensure they are working correctly.
Features:
·
Upto 500mA trip current with max 1000ms trip current
duration
·
Overload indication and protection, autodata storage
·
Wiring check, selective phase angle
·
Backlit display, external power supply
·
Auto power off
|
Model |
AR
5406 |
|
Rated
voltage |
230V +10%-15%, 50Hz |
|
Trip
Current |
10 / 20 / 30 / 200 / 300 / 500mA |
|
Trip
Time |
1000ms Max |
|
Accuracy |
Current: ±8%, Time: +0.6% ±4dgt |
|
Grounding
Resistance |
Max. 50Ω |
|
Operation
Conditions |
Temperature: 0~50C, <80% RH |
|
Features |
Power by Voltage, Overload Protection, Overheat Protection,
Overload Indication, AutoData Storage, Wiring Check, Selective Phase Angle, 3.5
figure backlit display, test button, auto power off |
|
Power source |
External power supply |
|
Dimensions |
165 x 140 x 80mm, 600g |
|
Std accessories |
Main unit, test cables, manual, case |
