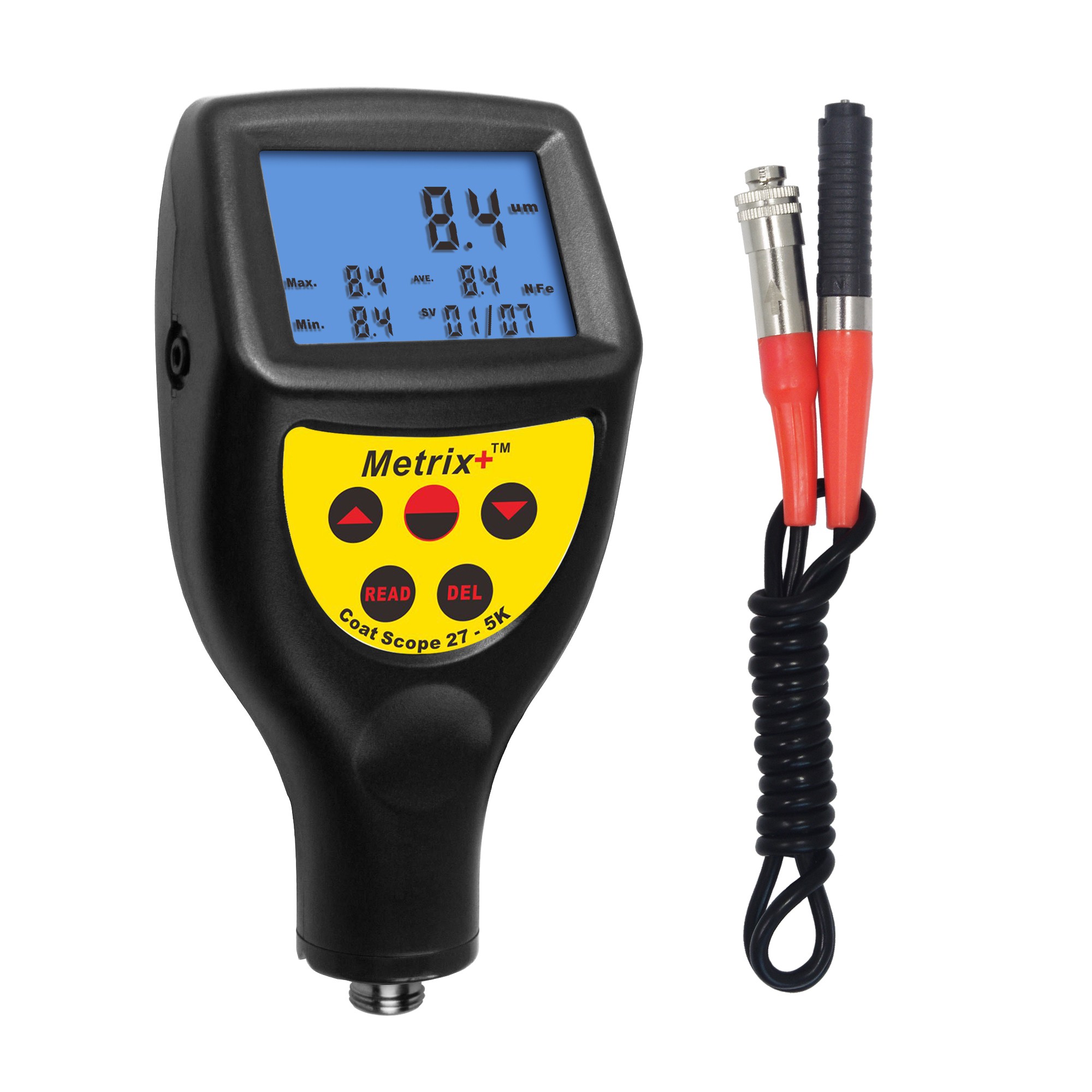

Coat Scope 27 5k Digital Coating Thickness Meter
Flexible probe Digital Coating Thickness Meter to measure the thickness of coatings on ferrous and non-ferrous substrates upto 5000um F and 3000um NF.
Features:
- Unique single probe for F and NF substrates with automatic substrate recognition.
- Zero-point calibration and multi-point calibration.
- Data storage and recall.
- Statistics of max, min and avg value of readings calculated and displayed.
- Backlit LCD display.
- Metric/imperial conversion.
- Single and continuous measuring modes.
Applications:
This Gauge is designed for non-destructively measuring the thickness of coatings on ferrous and non-ferrous substrates. It can be used to measure thickness of paint, galvanizing layer, lacquer layer, porcelain enamel, phosphide layer, copper tile, anodizing layer, varnish, plastic coatings, powder, etc.
Measuring Principle:
This instrument has a unique single external probe which uses the principle of electromagnetic induction to measure the thickness of non-magnetic coatings on magnetic substrates and eddy current principle to measure thickness of non-magnetic coatings on non-magnetic substrates.
| Model | Metrix+ Coat Scope 27-5k |
| International Standard | It meets the standards of both ISO 2178 and ISO 2361 as well as DIN, ASTM and BS. |
| Measuring principle | Magnetic induction(F) & Eddy current(NF) |
| Display | 4 digits backlit LCD |
| Measuring range | F : 0 - 5000um (0 - 160mils) |
| NF : 0 - 3000um (0 - 120mils) | |
| Accuracy | ±1-3%n or +2.5um |
| Resolution | 0.1um(0~99.9um); 1um(over 100um) |
| Metric/Imperial | Selectable |
| Minimum curvature radius | F : 1.5mm(convex) ; 25mm(concave) |
| NF : 3mm(convex) ; 50mm(concave) | |
| Minimum measuring area | Diameter 6mm |
| Minimum thickness of substrate | 0.3mm |
| Memory storage and recall | 99 groups of measurement |
| Statistics | Max, min and avg value of readings |
| Additional features | Low Battery Indicator, Auto power off |
| Power supply | 2 x 1.5V AAA(UM 4) battery |
| Operation environment | Temperature: 0 to 50℃ ; Humidity: < 95% |
| Size & Weight | 130mm × 65mm × 35mm; 90g(not including batteries) |
| Standard Accessories | Coating Thickness Gauge, F/NF combine probe, ‘0’ calibration blocks, standard foils, technical manual, hard carry case. |
| Optional Accessories | PC interface(cable and software) |
