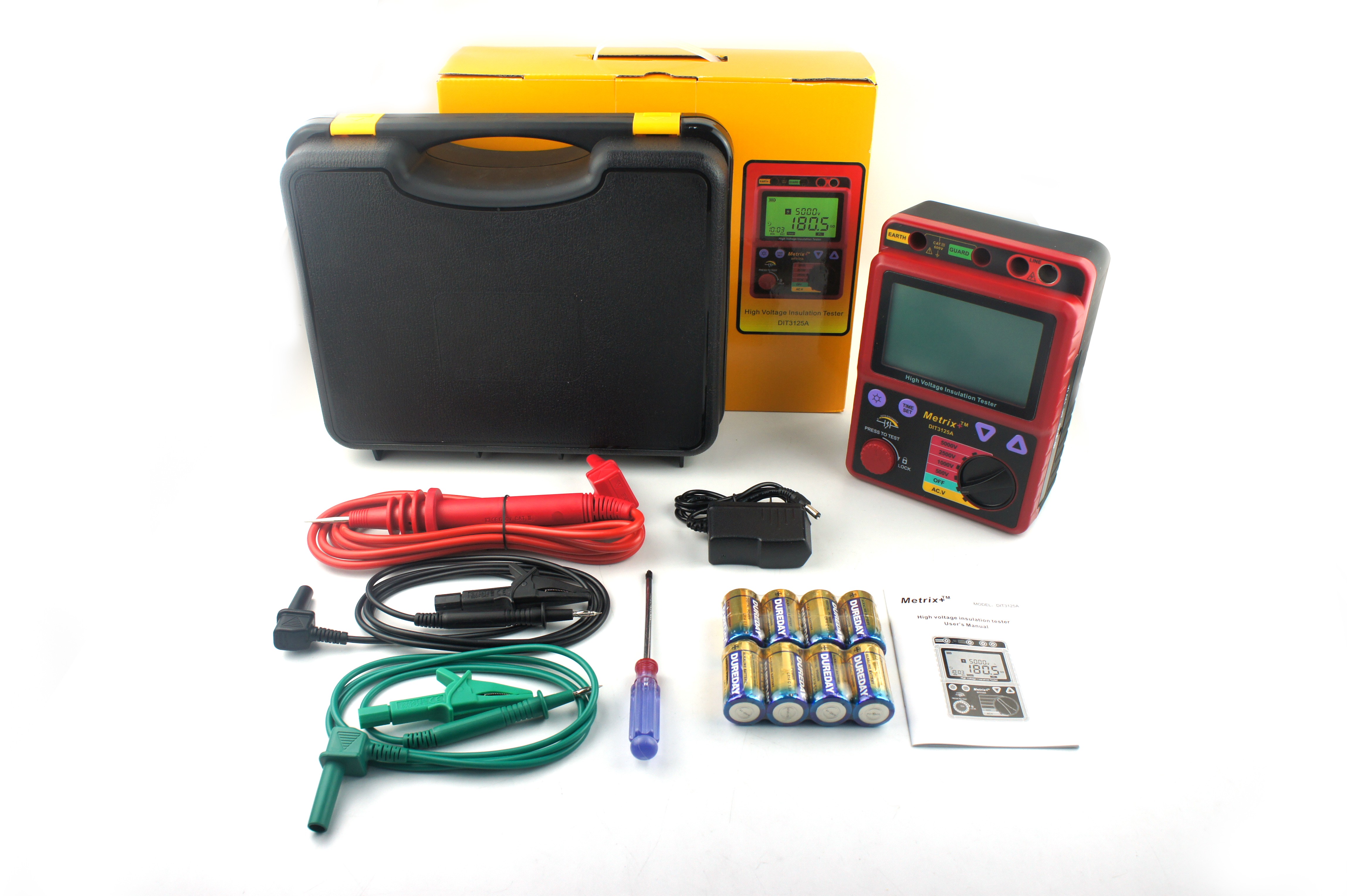

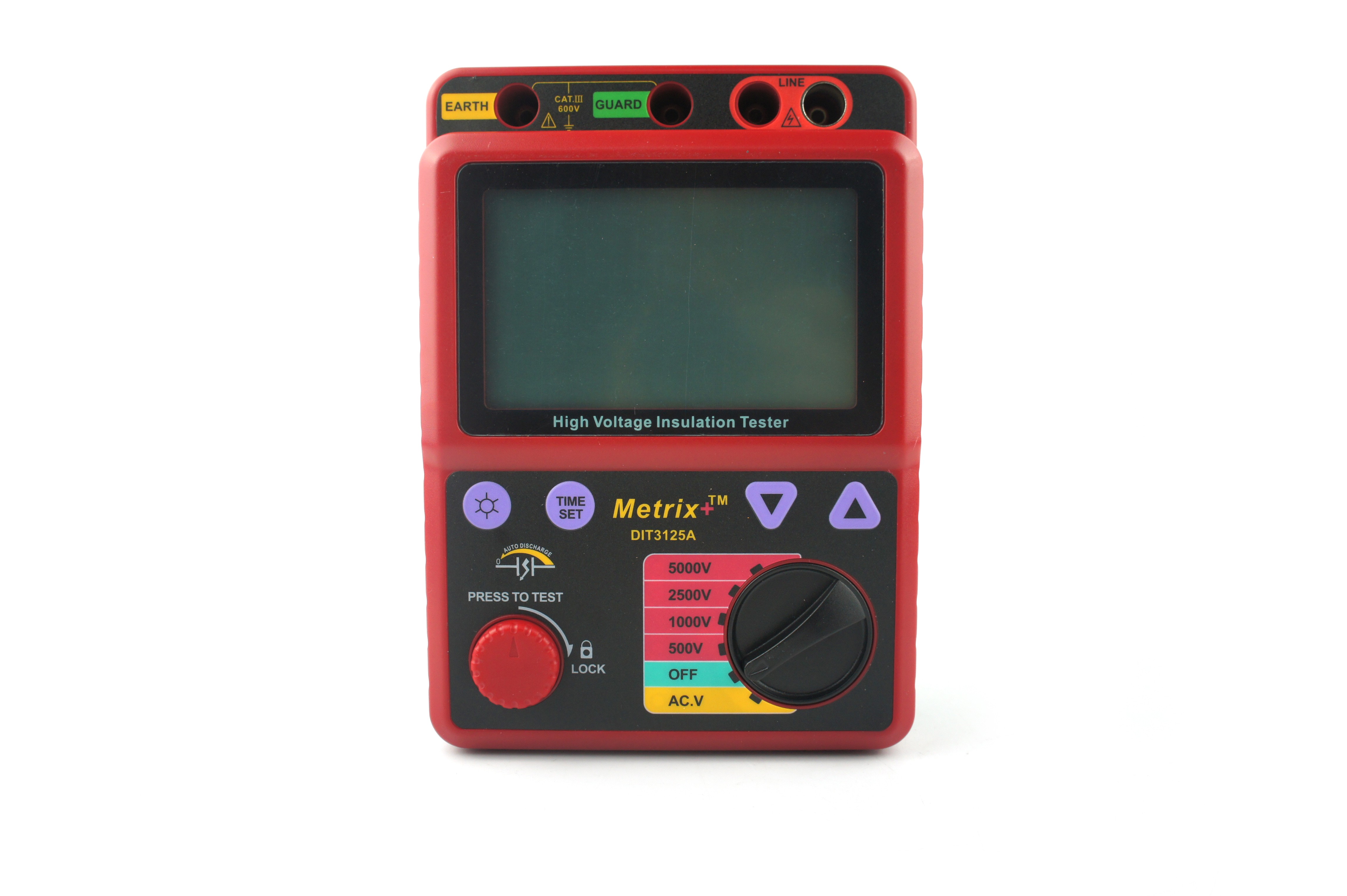

DIT 3125A Eco

5kV Digital Insulation Tester with DC Adapter or batteries for power supply

Features:
  • Backlit LCD display.
  • Auto discharge.
  • Timer measurement function and PI measurement
  • DC Adapter or batteries for power
  • Live circuit warning symbol with audio sound
  • Low voltage indication
  • Auto power off
Model Metrix+ DIT 3125A Eco
Display 999 count (1000 count only at 1TΩ)
Rated voltage 500V / 1000V / 2500V / 5000V
Insulation resistance testing range 0.0MΩ ~ 1000GΩ
Accuracy 0~99.9GΩ: ±2%rdg +3dgt; >100GΩ: +20% +3dgt
Short circuit current 1.3mA approx
Voltage testing range DC/AC 30 ~ 600V (50/60Hz)
Voltage testing accuracy +2%rdg +3dgt
Voltage Resolution 1.0V
Sampling rate 0.5 ~ 10 times/sec
Max. short circuit current 1.3mA
Operating conditions 0 ~ 40C, <85%RH
Storage conditions -20 ~ 60C, <90%RH
Power External power supply: DC adapter 12V/1A; or 8x1.5V LR14 battery
Size & weight 153 x 213 x 95mm, 1027g
