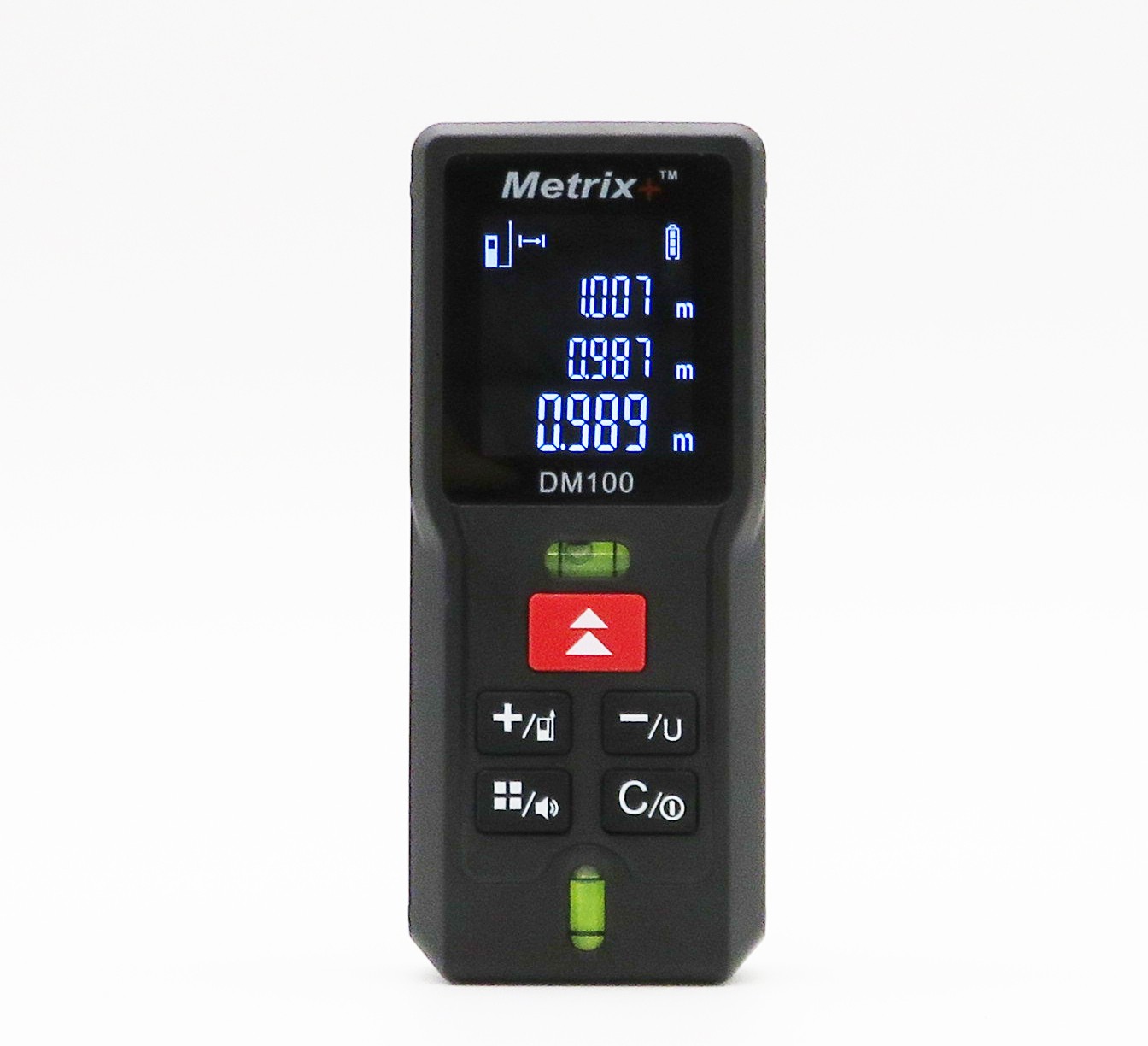

DM 100 Laser Distance Meter

100m Laser Distance Meter with area/volume calculations, bi axis spirit level, data storage and clear OLED display

Features:
  • Pocket type.
  • Area/volume calculations
  • Clear display for better readability from all angles.
  • Historical data review.
  • Bi-axis spirit bubble for checking level.


Applications:

This meter can be used to calculate distance, area, volume, and pythagorean distance in different units. Used in construction sites, floor planning, room area calculations and realtor industry.


Measuring Principle:

A Laser Distance Meter sends out a pulse of laser light to the target and detects the reflection. The meter then measures the time between those two events, and converts this to a distance.

ModelMetrix+ DM 100
Measuring modeSingle and Continuous(max/min)
Measuring range0.05 ~ 100m
Accuracy(Standard Deviation)±2.0mm
Measuring unitsDistance : m, ft, in
Area : m2, ft2
Volume : m3, ft3
Laser Type620 – 690nm,  Class II, <1mW
Single Measurement time0.25s
Other functionalitiesArea, Volume, Pythagoras measurements
Switchable measuring reference,
Silence function,
Battery power indication
Historical data review20 groups of data
Auto switch offLaser : 30s
Instrument : 180s
Operating temperature0 to 40℃
Storage Temperature-20 to 65℃
Dimensions and weight110mm×46mm×25mm ; 72g(without batteries)
Batteries2 x AAA 1.5V ; >5000 times working time(fully charged)
Standard AccessoriesLaser distance meter, carrying case, batteries, technical manual.
