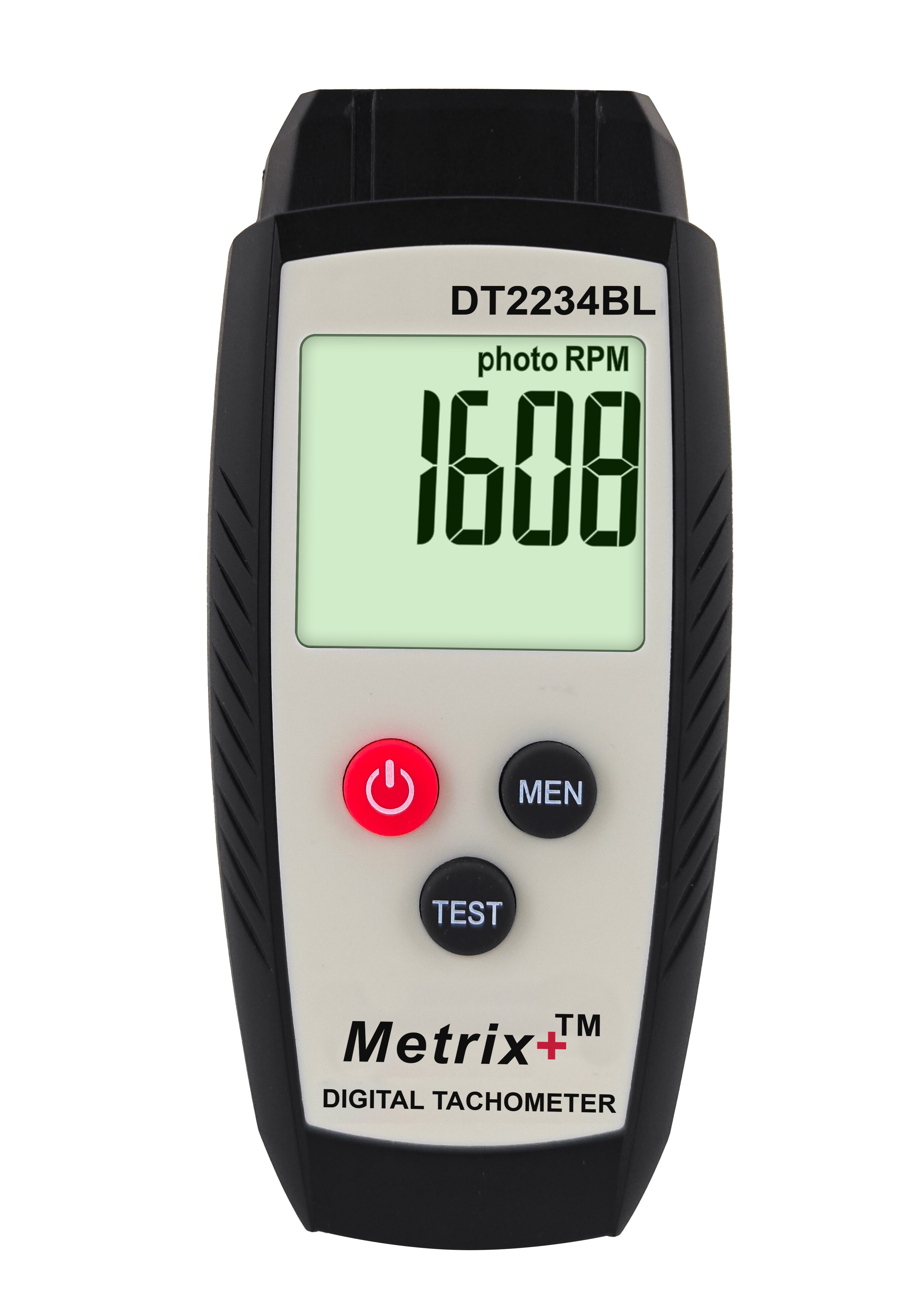

DT 2234BL Photo Tachometer
Non-contact photo tachometer with measuring range upto 99,999RPM
Features:
- Powerful laser for accurate measurements upto 99,999RPM.
- Large 5-bit 16” backlit display.
- Max/ min/ data hold function.
- Automatic range selection
- Effective distance of 50mm ~ 500mm
Measuring principle
|
DT 2234BL has a
laser, which reflects from a reflecting tape (provided with the instrument
and which is to be stuck on the rotating object), and the frequency of
reflections help to measure the RPM of the rotating object. |
Applications
|
This meter can be used to measure RPM(rotations per minute) of rotating objects, in a non-contact, convenient way. Useful in industrial, lab and consumer applications. |
|
Model |
Metrix+
DT 2234BL |
|
Measuring range |
10 ~ 99,999 RPM |
|
Accuracy |
± (0.05%+5) |
|
Resolution |
0.1rpm (10 ~ 999.99rpm), 1rpm (1000rpm
or more) |
|
Operating conditions |
Temperature : 0
~ 50oC (<80% RH) |
|
Power supply |
1 x 9V 6F22
battery |
|
Size and weight |
Main unit : 176
x 57 x 33 mm, approx. 160g |
|

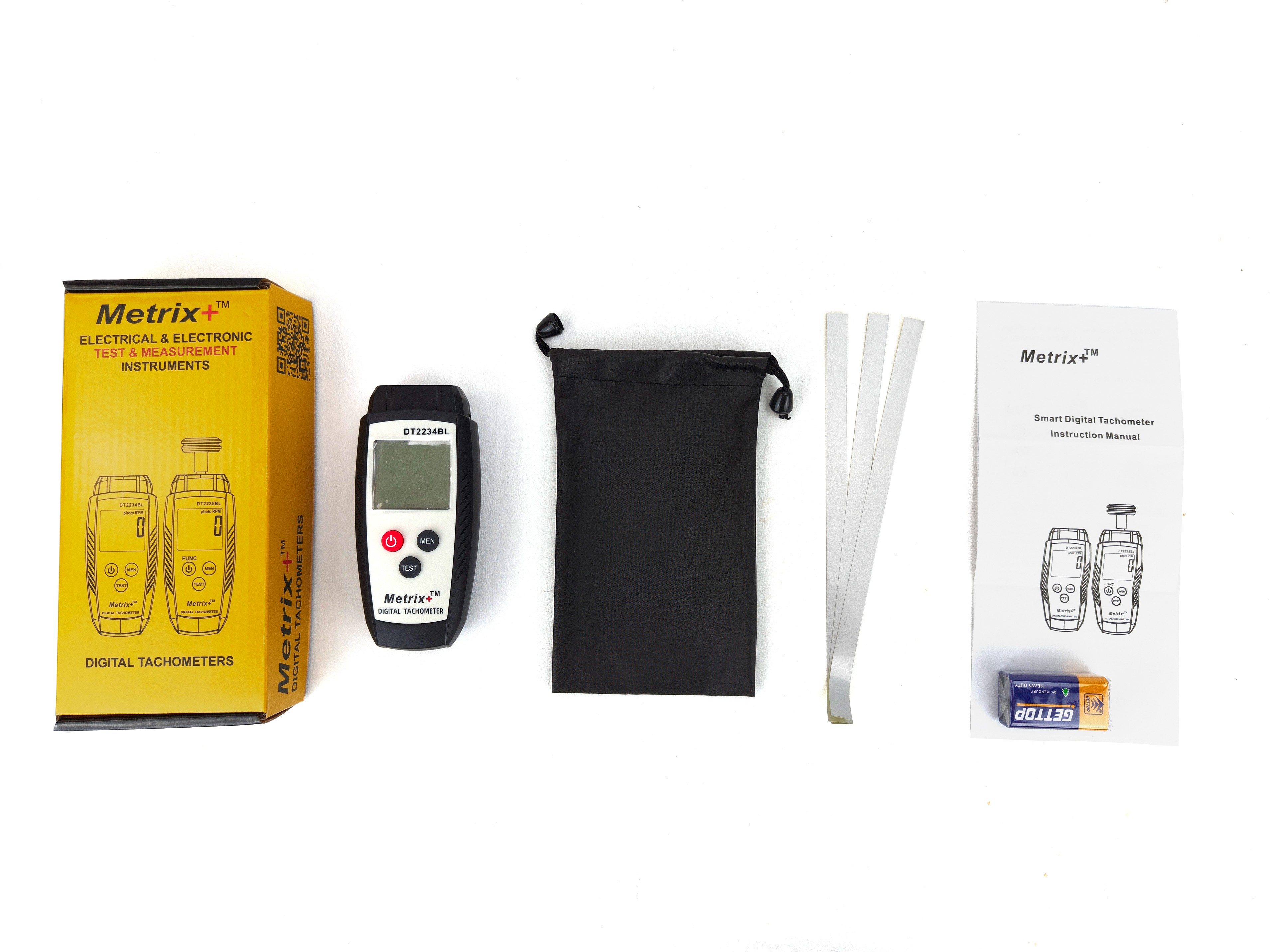

Standard Accessories |
Main unit, 3
reflective tapes(each 10 x 200m), battery, manual, gift box packing, cloth bag |
