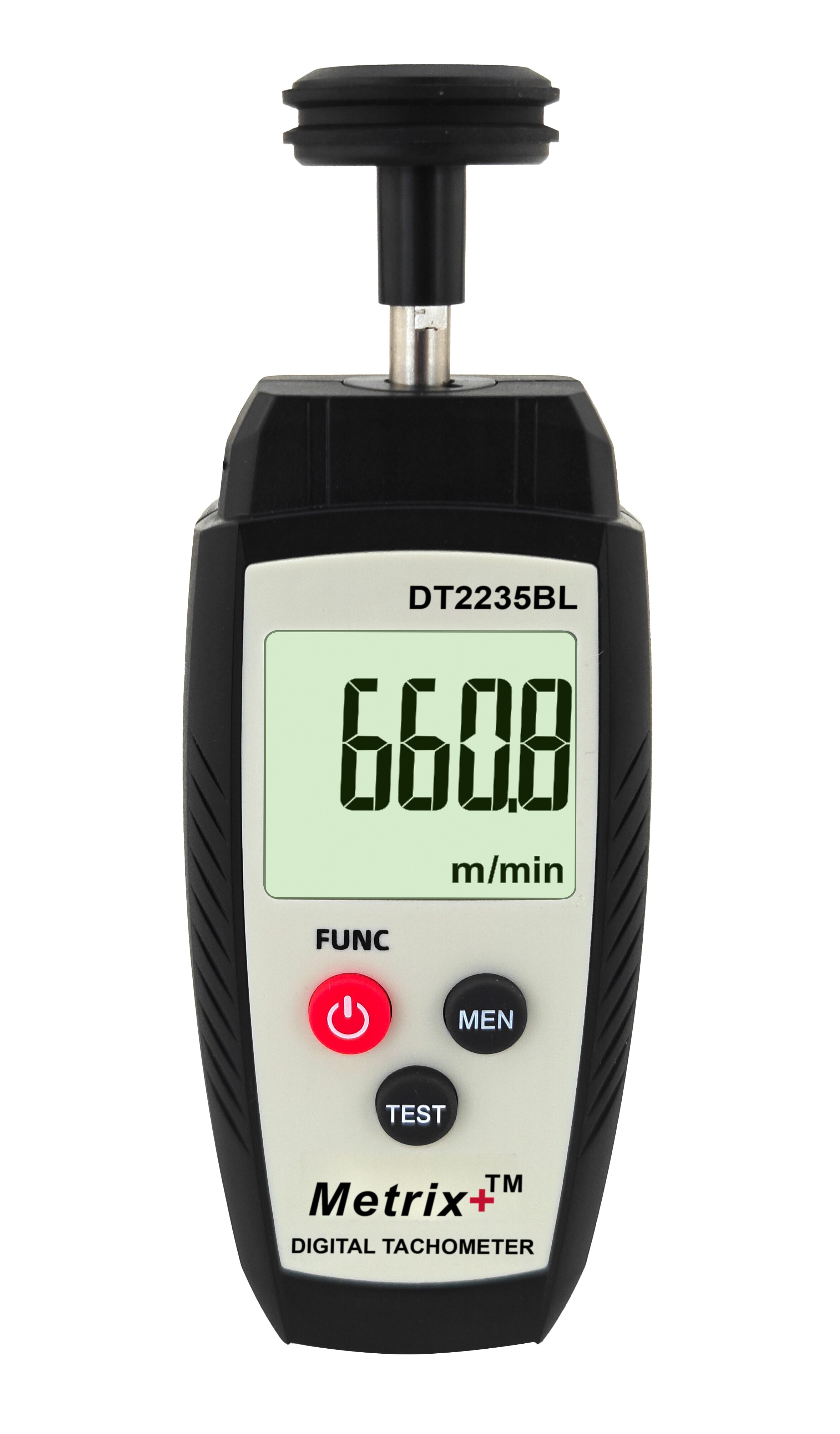

DT 2235BL Digital Tachometer
Contact type Tachometer with measuring range upto 19,999 RPM and contact line speed upto 2000m/min
Features:
- Rugged attachments for different types of rotating shafts.
- Measurement mode for Contact speed (rpm) and contact line speed (m/min or ft/min)
- Large 5-bit 16” backlit display
- Max/ min/ data hold function
- Automatic range selection
Measuring principle
|
DT 2235BL has a range of attachments, suitable to be connected to the rotating object to measure its RPM. |
Applications
|
This meter can be used to measure RPM(rotations
per minute) of rotating objects, in a contact, convenient way. Useful in
industrial, lab and consumer applications. |
|
Model |
Metrix+
DT 2235BL |
|
Measuring range |
1
~ 19,999 RPM (Contact speed mode) 1.00~1999.9
m/min or 3.3~6560 ft/min (Contact line speed mode) |
|
Accuracy |
± (0.05%+5) |
|
Resolution |
0.1rpm (1 ~ 999.99rpm), 1rpm (1000rpm
or more) 0.01m/min (0.05-99.999m/min),
0.1m/min (100m/min or more) |
|
Operating conditions |
Temperature : 0
~ 50oC (<80% RH) |
|
Power supply |
1 x 9V 6F22
battery |
|
Size and weight |
Main unit : 176
x 57 x 33 mm, approx. 160g |
|

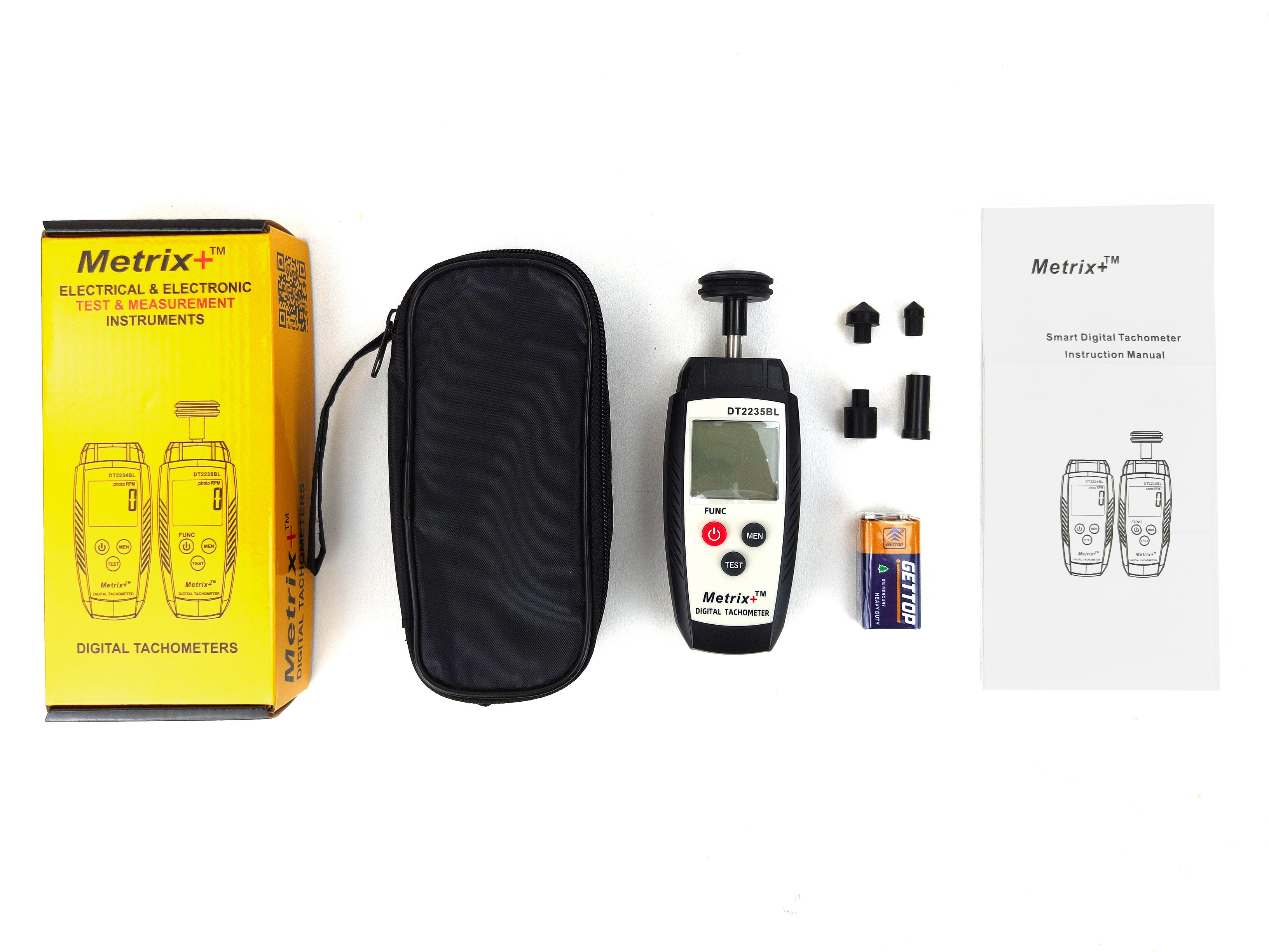

Standard Accessories |
Main unit, 5 attachments,
battery, manual, gift box packing, cloth bag |
| Catalogue: | Catalogue |
| Instruction Manual: | Instruction Manual |
