GSS 200 Gauss Meter
Measure magnetic field intensity with range 0/200/2000mT, AC/DC and various magnetic fields, frequency 10 ~ 200Hz, unit Gauss/mT, 2%/ 5% accuracy in uniform magnetic fields
Features:
§ High
accuracy due to high quality hall sensor
§
§
§ Range
conversion
Applications:
Our Gauss meters can measure both static magnetic fields(DC) and dynamic magnetic fields(AC). Suitable for radiation magnetic field, magnetic remanence, earth magnetic field, all kinds of magnetic induction intensity, etc.
Measuring Principle:
Gauss
meter sensors work on Hall effect principle, where the hall sensor generates a
voltage proportional to the magnetic flux density or magnetic field strength.
The voltage signal is filtered using low drift amplifiers and other necessary
filters, to display Tesla values to estimate the strength of magnetic fields.
|
Model |
Metrix+ GSS 200 |
Metrix+ GSS 400 |
|
Range |
0-200mT-2000mT |
|
|
Frequency
Range |
10 ~ 200Hz |
1 ~ 400Hz |
|
Accuracy
(measured in a uniform magnetic field) |
0~100mT: 2% >100mT: 5% |
DC: 1%, AC: 1% |
|
Resolution |
Range 200mT: 0.01mT Range 2000mT: 0.1mT |
|
|
Magnetic
field under test |
DC (static), AC(dynamic) |
|
|
Polarity
in DC field |
N for positive, S for negative |
|
|
Units |
mT(milli-tesla)/ Gs(gauss) |
|
|
Features |
backlit display, max hold, low battery
indication, auto power off |
|
|
Operating |
Temp: 0~50C, Humidity <80% RH |
|
|
Power source |
4 x 1.5V AAA batteries or 5V DC power supply |
|
|
Dimensions |
Main unit: 140 x 73 x 30mm, approx. 180g |
|
|
Std accessories |

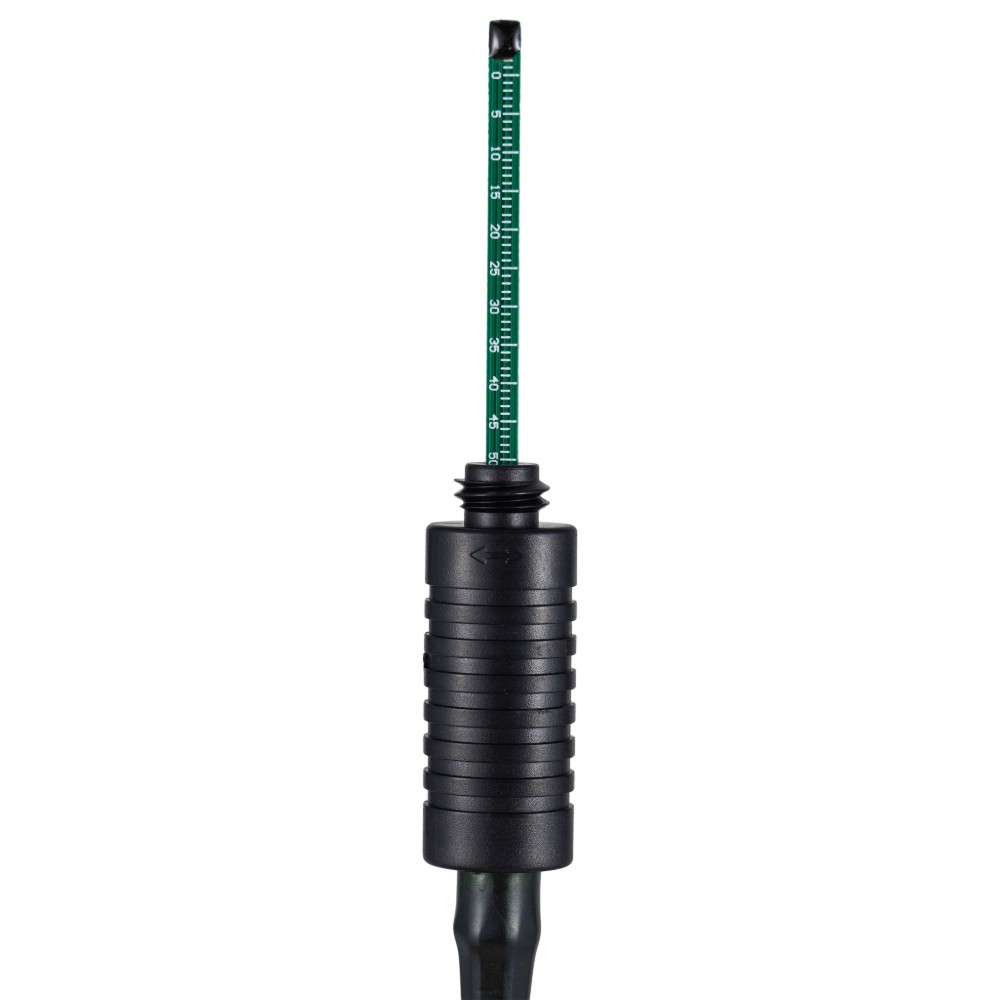

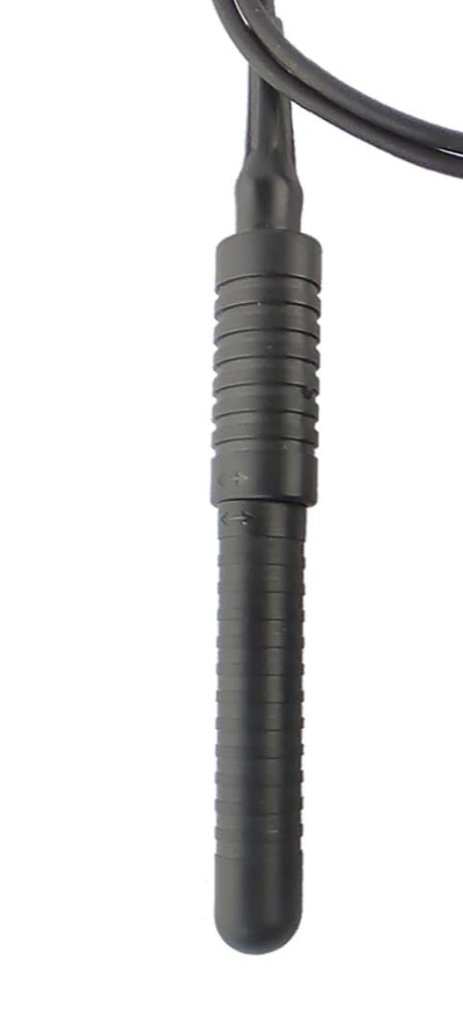

Main unit, sensor, manual, case |
|
