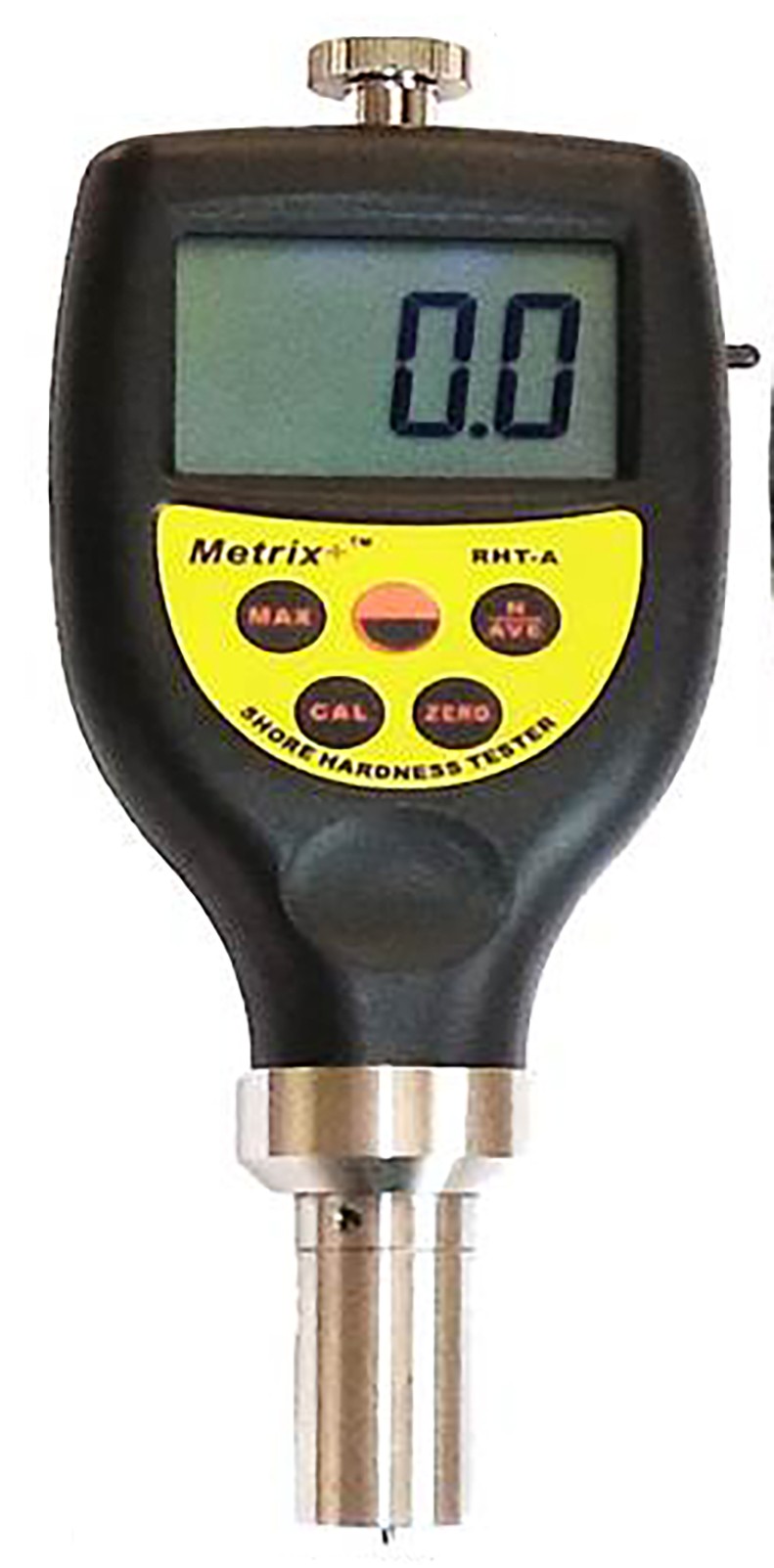

Rht-A Digital Rubber Hardness Tester
Shore A Rubber Hardness Tester with backlit display.
Features:
- Integrated probe and light weight design.
- Average value function and max data hold.
- Automatic power-off and low battery indication.
- Metric to imperial conversion.
- Inbuilt software calibration.
Applications:
Shore A scale is used for testing soft Elastomers (rubbers) and other soft polymers like soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt and leathers, with hardness values between 20 ~ 90A.
Measuring Principle:
This instrument utilizes an indenter loaded by a calibrated spring. The measured hardness is determined by the penetration depth of the indenter under the load. For shore A, the indenter is a hardened steel rod 1.1 mm – 1.4 mm in diameter, with a truncated 35° cone of 0.79 mm diameter.
| Model | Metrix+ RHT-A |
| Display | Backlit LCD |
| Measuring range | 0 – 100 / 10 ~ 90H |
| Accuracy | <+1H |
| Resolution | 0.1H |
| Power | 2 x 1.5V AAA (UM-4) Battery |
| Operation temperature | 0 ~ 50℃ |
| Dimension | 170 x 63 x 24 mm |
| Weight | 310g (excluding batteries) |
| Standard Configuration | Main Unit, pin length test block(this is not the real hardness test sample; it is only an imitation. Just place it onto a flat glass, then place the point of indenter into the hole of the block when taking measurement), carrying case, manual. |
| Optional accessories | PC interface, shore hardness tester measurement stand, rubber hardness test block(A/D type) |
| Catalogue: | Catalogue |
