Model

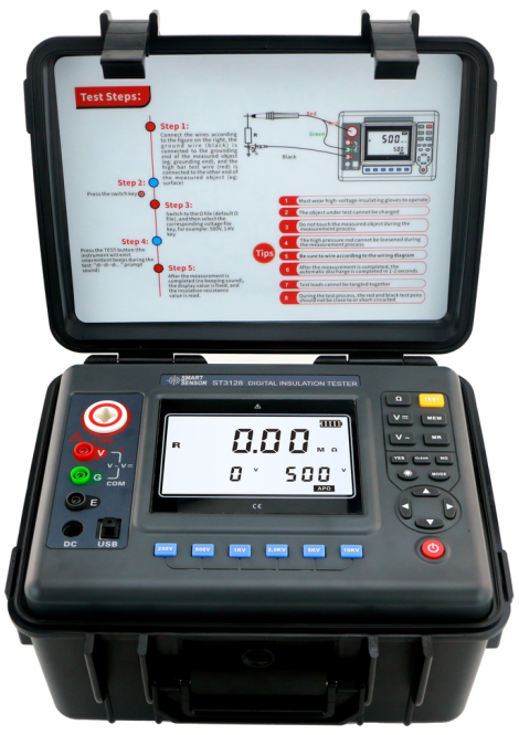

ST 3128

Safety ratings

IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT III 300V

Rated Voltage

250/ 500/ 1K/ 2.5K/ 5K/ 10KV,

Accuracy: rated voltage x (1±10%)

Insulation Resistance Range

0.01MΩ ~ 3000GΩ, Resolution 0.01MΩ

Testing Voltage Range

DC: 0 ~ 1000V, ±1.5rdg±3dgt, 0.1V

AC: 0 ~ 750V, ±1.5rdg±3dgt, 0.1V

Output Short circuit current

≥5mA (10KV)

Power Consumption

Power On Backlight On: 42mA, Max Measurement: 300mA Max

Withstanding Voltage

AC3kV/50Hz 1min

Accuracy

±1% ±0.1

Resolution

0.01Mohms

Features

Polarization Index, Absorption Ratio, Automatic discharge, Overload indication, Large backlit display(108x65mm), data storage(500 readings), backlit display, alarms, auto power off

Operating

Temp: 0~50C, Humidity <90% RH

Power source

12.6V rechargeable Li battery,

Dimensions

475 x 398 x 230mm, 6.2kg

Std accessories

Main unit, test cables, manual, case
