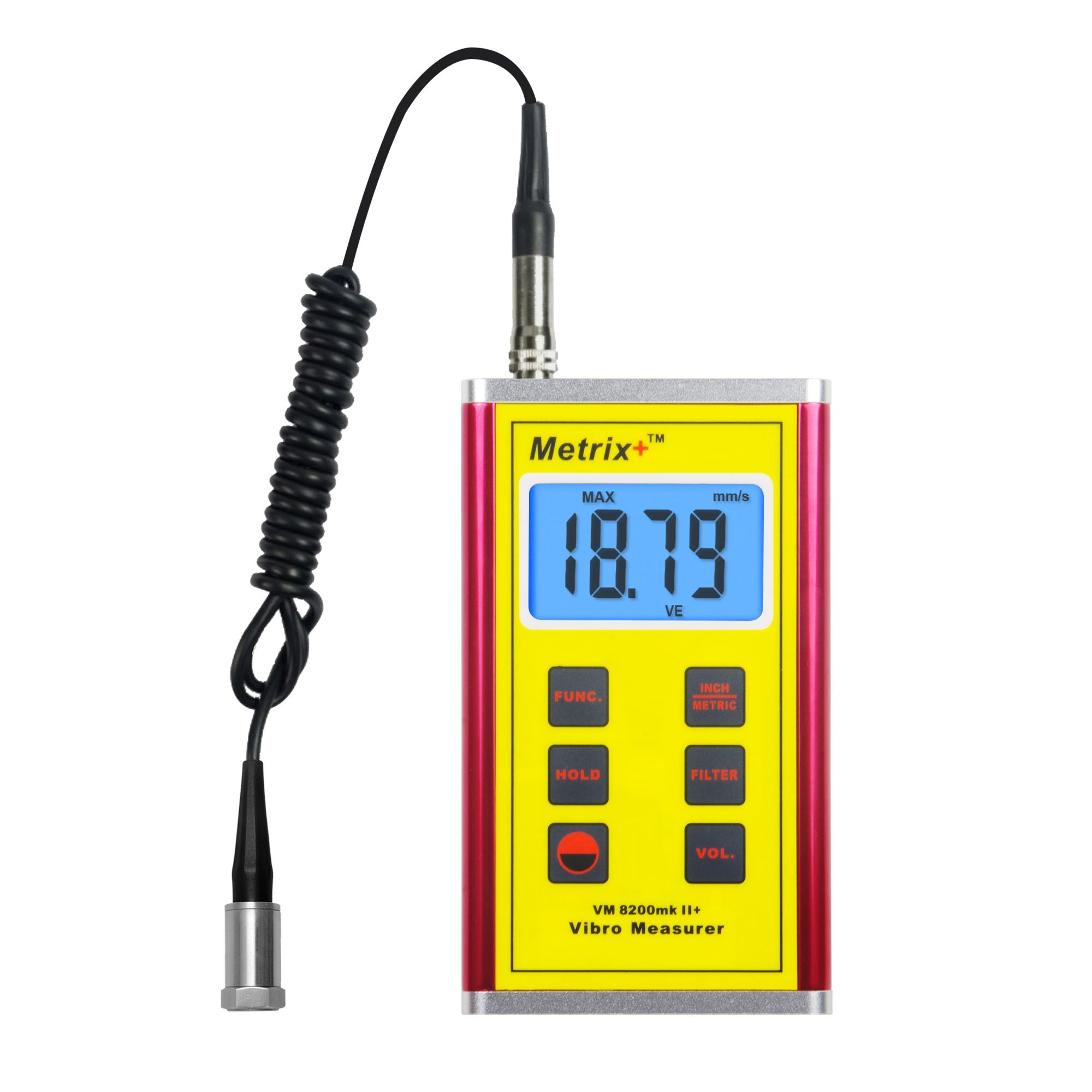

VM 8200mkII+ Vibration Meter
Sturdy metal body Vibration Meter with measuring range upto 400mm/s and wide frequency range in acceleration mode
Features:
- Individual high-quality accelerometer for accurate and repeatable measurement.
- Used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
- Acceleration, velocity and displacement measurements.
- Sturdy metal body for rugged operation.
- Wide frequency range in acceleration mode.
- RPM and frequency measurements.
- Backlit LCD display.
Applications:
A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance. A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges.
Measuring principle:
Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing.
|
Model |
Metrix+ VM 8200 mkII+ |
|
|
Display |
4-digit backlit LCD |
|
|
Transducer |
Piezo electric accelerometer |
|
|
Velocity |
0.01 ~ 400.0 mm/s ; 0.000 ~ 16 inch/s |
|
|
Acceleration |
0.1 ~ 400.0 m/s2, 0.3 ~ 1312 ft/s2
equivalent peak |
|
|
Displacement |
0.001 ~ 4.000 mm equivalent peak-peak; 0.04
~ 160.0 mil |
|
|
R P M |
60 ~ 99,990 r/min |
|
|
Frequency |
1 ~ 20kHz |
|
|
Frequency
range for measuring |
Acceleration |
10Hz – 10kHz |
|
Velocity |
10Hz – 1kHz |
|
|
Displacement |
10Hz – 1kHz |
|
|
Accuracy |
+5% of reading |
|
|
APO |
Enabled by user |
|
|
Max hold |
Peak Hold |
|
|
Analog
output |
AC output 0 ~ 2.0V peak full scale(load
resistance above 10k) |
|
|
Power
supply |
1.5V x 2 AA battery |
|
|
Operating
condition |
Temperature : 0-50oC ; Humidity :
below 95% RH |
|
|
Dimensions
and weight |
130 x 70 x 30mm ; 305g |
|
|
Standard
accessories |
Powerful rare earth magnet, measurement
probe, stinger probe(cone), stinger probe(ball), manual, batteries, carrying
case |
|
|
Optional
accessories |
PC interface |
|
