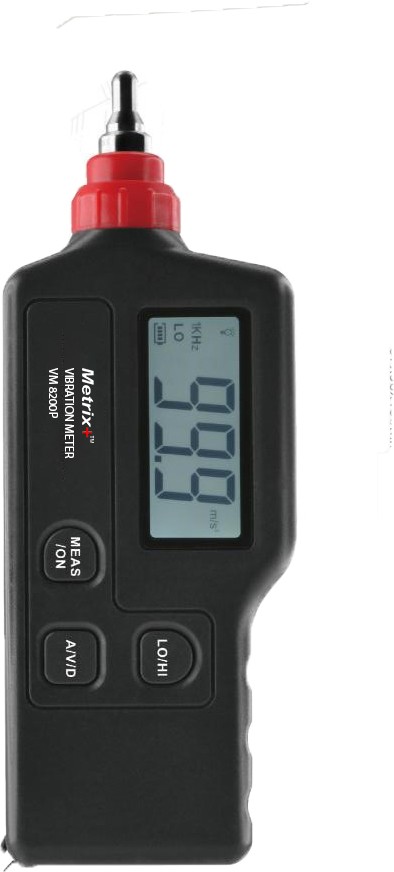

VM 8200P Vibration Meter

Pen type probe vibration meter with simple operation

Features:
  • Ultra-portable with easy operation
  • Acceleration, velocity and displacement measurement
  • Backlit LCD


    Applications:

    A vibration meter is used in manufacturing for machine condition monitoring, product testing and quality assurance. A vibration meter also can be used in civil engineering to measure the vibration of structures such as buildings, roads and bridges.



    Measuring principle:

    Vibration Meter employs a piezoelectric transducer to measure vibrations of a material and displays it in one or more of displacement, velocity or acceleration values for analyzing.

    Model Metrix+ VM 8200P
    Display 4-digit backlit LCD
    Transducer Piezo electric ceramic accelerometer(shear type)
    Velocity 0.1 ~ 199.9 m/s
    Acceleration 0.1 ~ 199.9 m/s2
    Displacement 0.001 ~ 1.999 mm
    Frequency range for measuring Acceleration
    Velocity
    Displacement
    Accuracy  +5% of reading + 2d
    Power supply 1 x 9V battery
    Operating condition Temperature : 0-40oC ; Humidity : 30 ~ 90% RH
    Dimensions and weight 183 x 67 x 30mm ; 147g
    Standard accessories Vibration meter, manual, battery, hard carry case
