WPM 100 Welding Pressure Gauge
Measure spot welding pressure of electrodes, upto 100kgf/ 980N, with real time and peak value, convertible units of N/ kg/ lb, and backlit LCD
Features:
§ Various models from 10kgf(100N) – 5000kgf(49,000N)

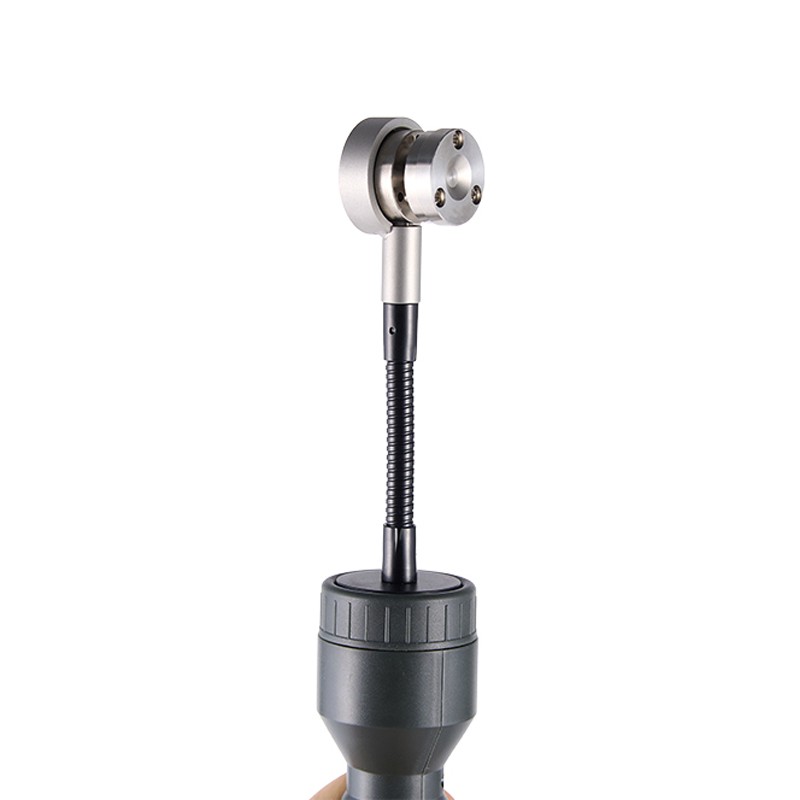

§ Long, flexible sensor allows for easy placement and measurement in narrow spaces
§ Max data hold
§ Convertible measurement units: N, kg, lb
Applications:
Spot welding machine uses electrical resistance welding process to join overlapping metals between two electrodes. The pressure applied by electrodes is a critical parameter to make sure proper welding result, and this meter can measure that pressure to verify proper working of the spot-welding machine. Useful in material test machines, printing machines, test benches of automatic equipment, welding industry, etc. measuring pressure between two pointed systems.
Measuring Principle:

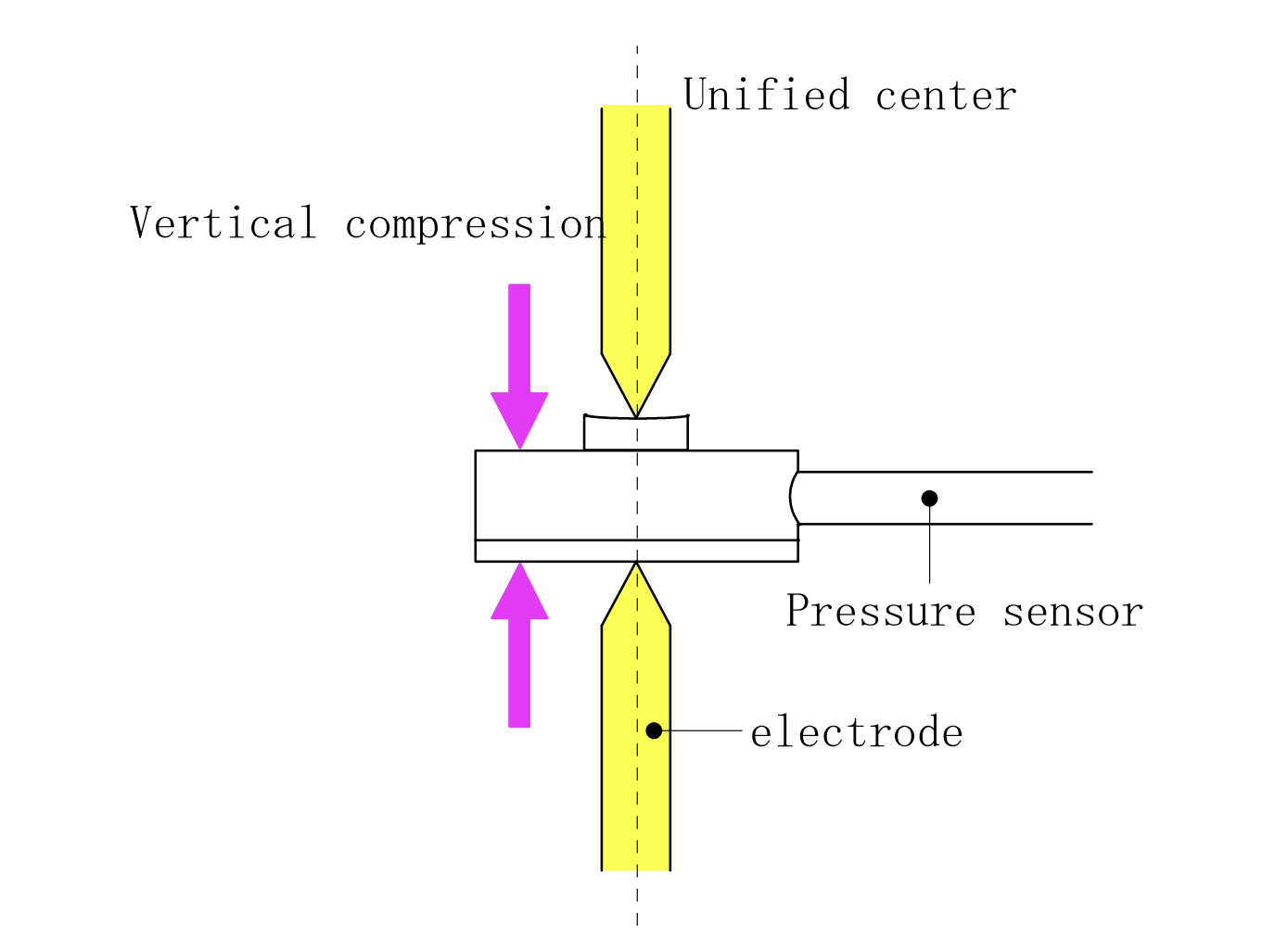

This instrument has a pressure gauge and strain gauge as the input sensor to measure the pressure applied by electrodes of a spot-welding machine..
|
Model |
Metrix+ WPM 10 – WPM 5K |
|
Range |
WPM 10 – +10kgf/ 98N WPM 100 – +100kgf/ 980N WPM 1K – +1000kgf/ 9800N WPM 5K – +5000kgf/ 49,000N |
|
Resolution |
<100kgf: 0.01kgf, < 1000N:
0.1N >100kgf: 0.1kgf, > 1000N: 1N |
|
Accuracy |
+0.5% FS +1 digit |
|
Units |
Kgf, N, lbf |
|
Safe
load |
150% FS (buzzer alarm over 110% FS) |
|
Power |
2 x 1.5V AA batteries or 5V DC power supply |
|
Features |
Max hold, backlit display, low battery
indication, auto power off |
|
Operating |
Temp: 0~40C, Humidity <80% RH |
|
Dimensions |
175 x 80 x 36mm, approx. 390g Sensor size: 268mm x (dia)44.6mm |
|
Surrounding |
No vibrating source or corrosive medium |
|
Std
accessories |
Main unit, sensor, manual, case |
