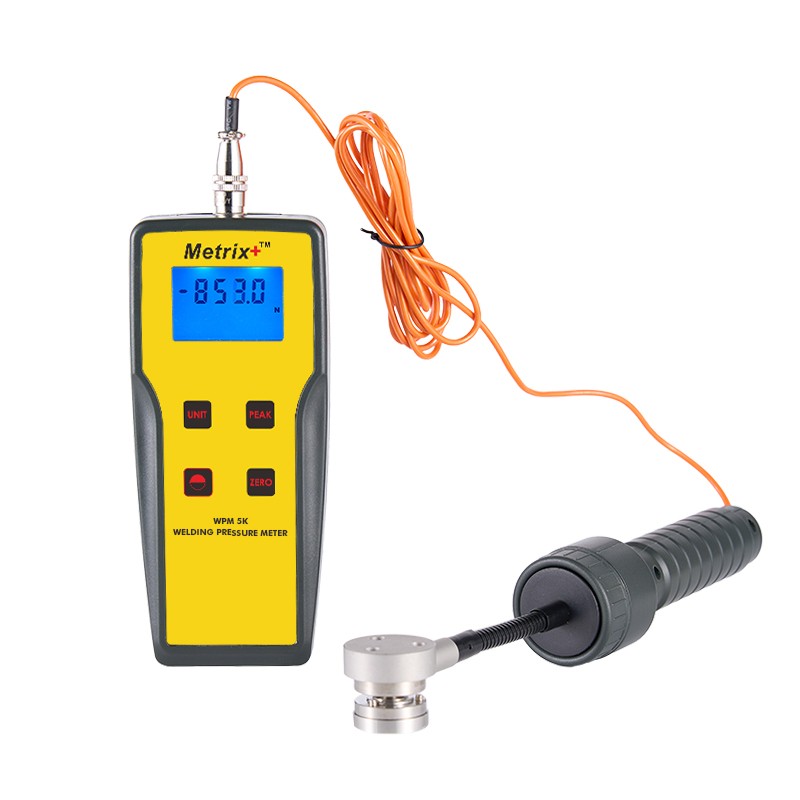

Features:

§  Various models from 10kgf(100N) – 5000kgf(49,000N)

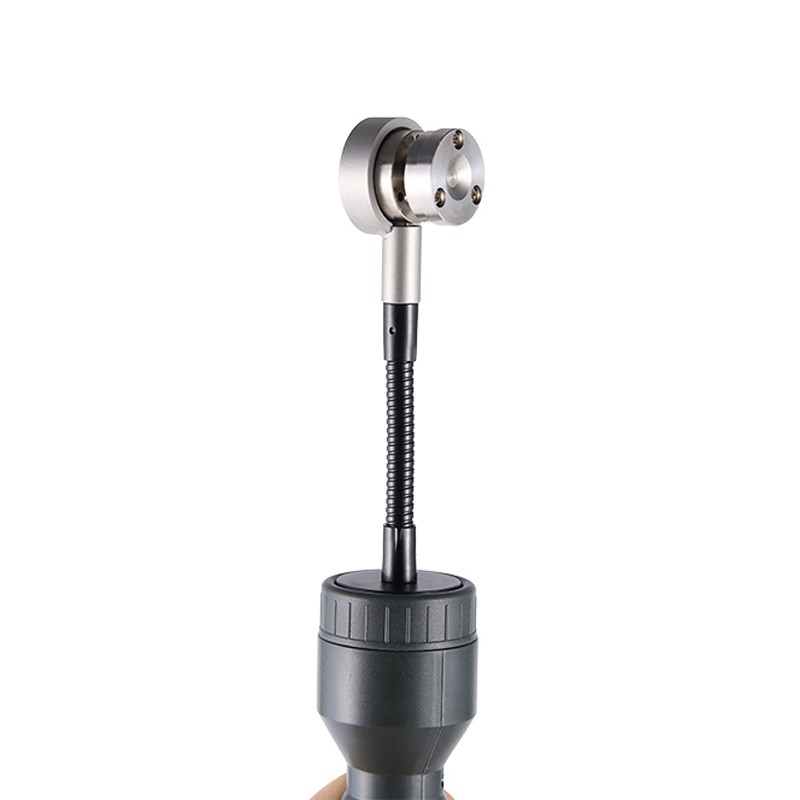

§  Long, flexible sensor allows for easy placement and measurement in narrow spaces

§  Max data hold

§  Convertible measurement units: N, kg, lb

§  Battery or external power supply

Applications:

Spot welding machine uses electrical resistance welding process to join overlapping metals between two electrodes. The pressure applied by electrodes is a critical parameter to make sure proper welding result, and this meter can measure that pressure to verify proper working of the spot-welding machine. Useful in material test machines, printing machines, test benches of automatic equipment, welding industry, etc. measuring pressure between two pointed systems.

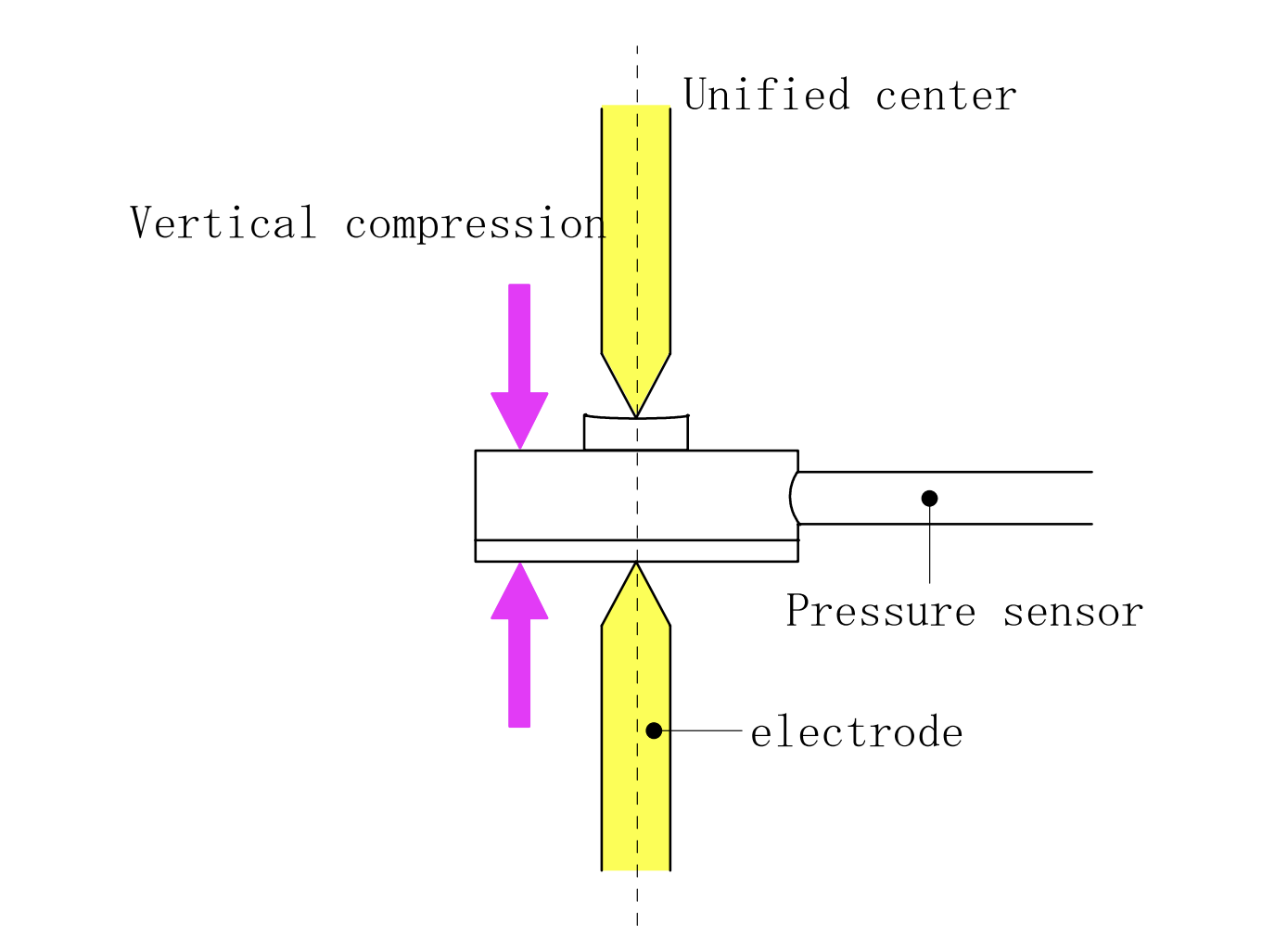

Measuring Principle:

This instrument has a pressure gauge and strain gauge as the input sensor to measure the pressure applied by electrodes of a spot-welding machine..
